What Is an Automotive Relay Box and Why You Need One

Modern vehicles rely on increasingly complex electrical systems. From headlights and fuel pumps to infotainment systems and power windows, every function requires a reliable flow of electricity. Managing all these components individually would be inefficient and could lead to electrical overloads or failures. This is where the automotive relay box comes in—a centralized hub that helps control, protect, and organize your vehicle’s electrical circuits.

Understanding the Automotive Relay Box

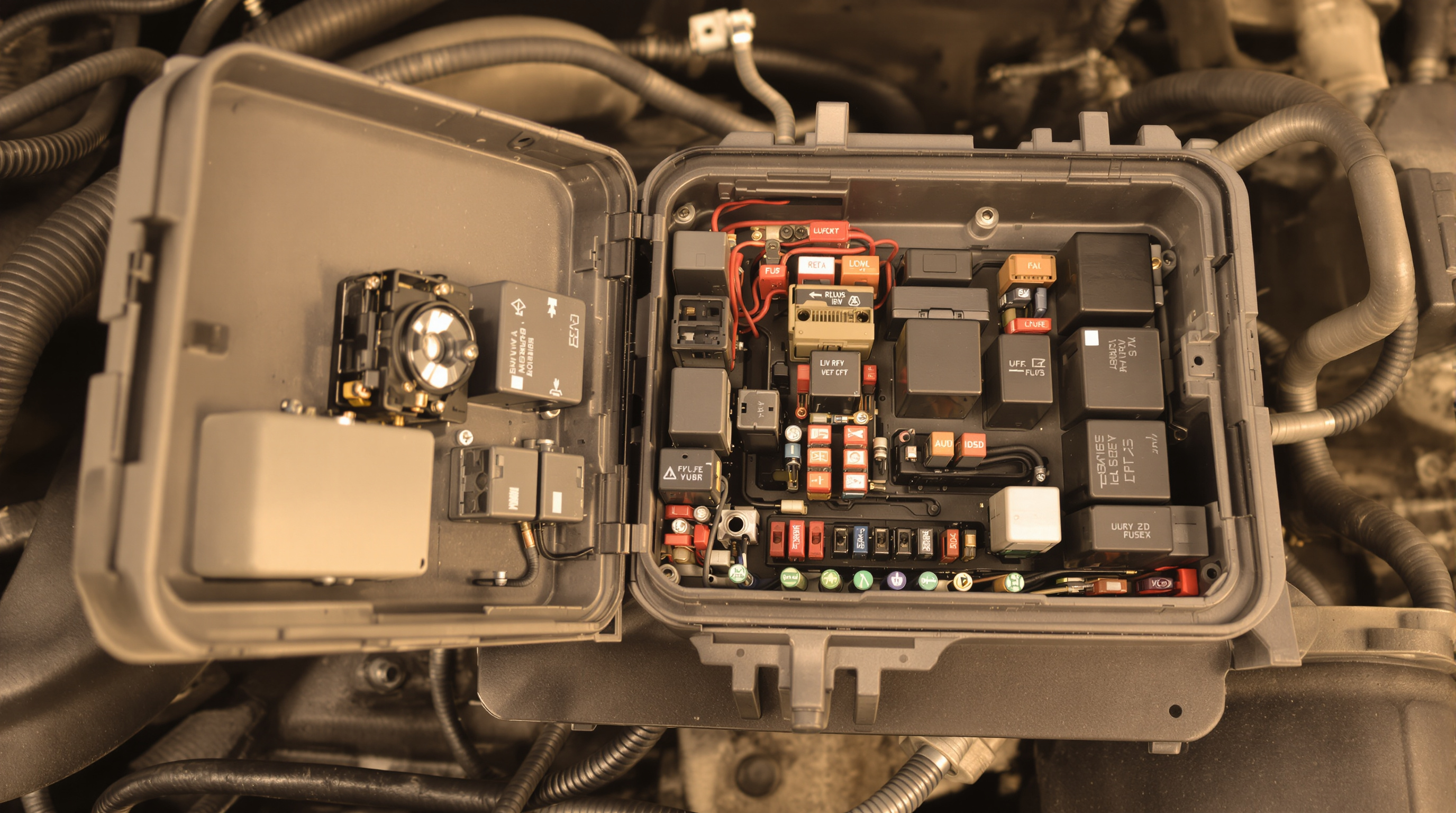

An automotive relay box, sometimes called a fuse and relay panel, is essentially a control center for your car’s electrical system. It houses relays, fuses, and sometimes circuit breakers in a single compact unit. The relays act as electrically operated switches, allowing low-current circuits, such as dashboard controls, to control high-current devices like headlights, horns, or cooling fans without running heavy wiring directly to the switch.

By using relays, the relay box ensures that high-current devices receive stable power safely while protecting switches, wiring, and other electronics from overheating or damage. Many vehicles combine multiple relays and fuses in one box, simplifying maintenance and improving reliability.

How a Relay Box Works

Inside the relay box, each relay has a small control circuit and a high-current circuit. When you activate a switch—say, turning on your headlights—it sends a small electrical signal to the relay’s coil. This energizes the relay and closes the internal contacts, allowing a much larger current to flow directly from the battery to the headlights.

This arrangement prevents heavy current from traveling through dashboard switches or thin wiring, which could overheat or fail. It also allows multiple circuits to be controlled efficiently from a single central location.

Benefits of Using a Relay Box

1. Safety and Protection

By centralizing high-current circuits, a relay box reduces the risk of overheating and electrical fires. Fuses and relays provide an extra layer of protection, ensuring that a malfunction in one device doesn’t damage the entire system.

2. Simplified Wiring

Instead of running separate wires from the battery to every component, the relay box allows high-current circuits to be routed in a neat, organized fashion. This reduces wiring clutter and makes troubleshooting easier.

3. Improved Performance

Devices such as headlights, horns, or fans operate more efficiently when powered directly through a relay, rather than through long wires and switches. This results in brighter lights, stronger horn output, and faster fan operation.

4. Easy Maintenance

Relay boxes group fuses and relays in an accessible location, making it easier to check for blown fuses or replace faulty relays. This can save time and money on repairs.

Applications in Modern Vehicles

Relay boxes are found in nearly all vehicles today. They control high-power systems like:

• Headlights and fog lights
• Cooling fans and air conditioning systems
• Fuel pumps and engine control modules
• Power windows, locks, and sunroofs
• Aftermarket accessories such as off-road lights or auxiliary power devices

In high-performance or off-road vehicles, aftermarket relay boxes are often added to handle additional electrical loads safely. These relay boxes allow custom accessories to be integrated without overloading the factory wiring.

Choosing the Right Relay Box

When selecting a relay box, consider the number of relays and fuses you need, the type of relays supported (standard 30A, 40A, or heavy-duty), and whether the box is compatible with your vehicle’s voltage system. For marine or off-road use, waterproof or corrosion-resistant relay boxes are recommended to withstand harsh environments.

Installation should follow proper wiring practices: secure connections, appropriately rated fuses, and clear labeling for each circuit. A well-organized relay box not only protects your vehicle but also simplifies future upgrades or troubleshooting.

Conclusion

An automotive relay box is more than just a collection of relays and fuses. It is a critical component that organizes, protects, and optimizes your vehicle’s electrical system. By using a relay box, you improve safety, enhance performance, reduce wiring clutter, and make maintenance easier. Whether you’re managing factory systems or adding aftermarket accessories, a properly installed relay box is an essential investment for reliable and efficient vehicle operation.
